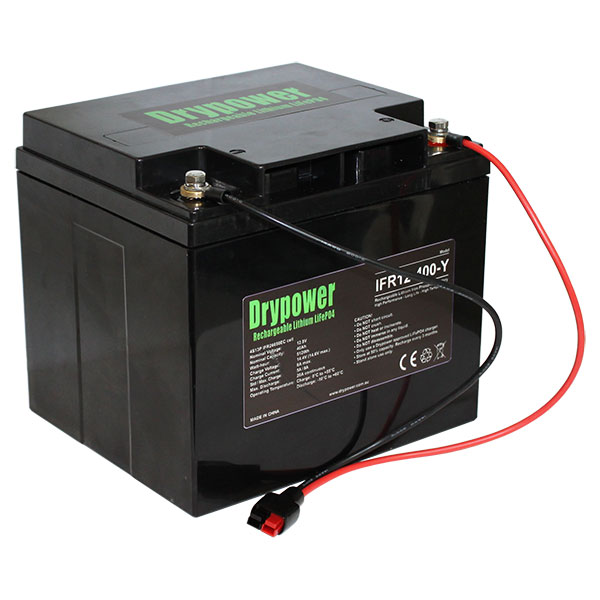

IFR12-400-Y

Drypower 12.8V 40Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery

Comments

Optional Accessory: Powerpole to DC plug converter cable, see CC40-300.

Click here to download Drypower Lithium Golf A4 Flyer


12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

  • High capacity - rated at 5 hour discharge rate against lead acid rated at the 20 hour rate. For example a 26Ah lead acid battery (20 hour discharge rate) is approximately only 22Ah at the 5 hour discharge rate.
  • Low weight, approximately one third of a similar capacity lead acid battery.
  • Deep cycle, recharges up to 2000 times at 80% depth of discharge. That's 4-8 times better than a lead battery's cycle life dependant on usage conditions.
  • Fast Charge, able to accept higher charging currents all the way to charge termination. No float or trickle required.
  • Inbuilt Protection Circuit Module, protects against over-charging, over-discharging, over-current, external short circuit, incorrect charger use. Beware cheap imitations that lack a protection circuit or only use BMS cell balancing upon charging.

WANT TO KNOW MORE?

Click the links for the downloadable 2016 Drypower Lithium Catalogue and the Drypower Frequently Asked Questions (FAQs).


CAUTION: Dedicated charger is required. Do not use non appropriate chargers or chargers used for other battery chemistries. We recommend using charger model: FY1503000 or FY1506000
PLEASE NOTE many sellers new to the lithium battery industry are claiming lithium ion phosphate batteries can be properly charged with lead battery chargers. This is incorrect. Please use chargers specifically designed for charging lithium ion phosphate batteries or batteries may not fully charge and/or battery life may be significantly reduced.


NOTE: This battery contains a lithium ion battery protection circuit module (PCM). The PCM further enhances the safe usage of this battery in comparison to non-protected rechargeable lithium batteries. We recommend when this battery is used in multiple packs for series or parallel connections that individual chargers are used for each battery. Charging multiple battery arrays as a single battery pack may trigger the PCM inside one or more of the batteries that could lead to capacity miss-match in the array that could reduce performance of the complete battery pack array. Please consult us for further information and technical advice.


Shipping restrictions

SHIPPING RESTRICTIONS APPLY

This lithium based product is classified as Class 9 DG (UN3480) where it contains more than 20Wh/cell or 100Wh/pack (Lithium Ion) and therefore cannot be sent by airfreight.

Transport via ROAD or SEA FREIGHT ONLY for this product.

Data Sheet

View Data Sheet  Can't read the data sheet? Try www.adobe.com
Chemistry
Lithium Iron Phosphate
Voltage
12.8V
Nominal Capacity
40000mAh
Maximum Continuous Discharge Current
25000mA
Selling Unit
EACH
Termination
M6 Bolt plus removable leads to anderson connector
Width
165mm
Height
175mm
Length/Breadth/Depth
195mm
Weight
5800g
