DP-12400-R
12.8V 4RU Rack Mounted Battery
12.8V 400Ah 5.12kWh Rack Mounted Battery Module LiFePO4 4RU 4S4P with LCD Screen
Drypower DR-12400-R 12.8V 400Ah Rack Mounted LiFePO4 Battery Module
The Drypower DP-12400-R rack mount battery module is a 4RU sized solution offering exceptional performance and service life.
Capable of delivering up to 6000 cycles to 80% DoD, the DP-12400-R features multiple battery protections such as the advanced BMS providing protections against over/under voltage, over/under temperature & short circuit, an Auto-Safety Switch feature designed to immediately cut power in a dangerous situation, and in-built twin fire arrestors as the last line of defence to ensure safe operation and swift fault mitigation.
Suitable for use in fixed or mobile applications, and scalable up to 16 units (81.92kWh of storage), the Drypower Rack Module range is worth considering for your next system.
Superior Service life
The Drypower DP-12400-R module offers outstanding performance, delivering up to 6,000 service cycles (0.5C at 25°C, 80% DoD). An efficient 4S4P construction enhances inverter compatibility, improves charging efficiency, and maximises usable capacity, providing a reliable solution for long-term use.
System Expansion Capable
System expansion capable up to 16 modules to accommodate up to 81.92kWh of battery storage whilst preserving BMS communications *See Product User Manual or Datasheet for more information..
LCD Screen
The easy-to-read and navigate LCD screen provides instant battery/system parameters and specification data to keep you fully informed.
Intelligent BMS
Drypower's Intelligent BMS is designed to provide the maximum in performance and protection to ensure safe & long term operation. Multiple protections include over & under voltage detection, over & under temperature detection, short circuit protection and the innovative Auto Safety Switch which immediately isolates the battery terminals, safeguarding your equipment.
Fire Protections
Drypower rack modules are built with dual internal, aerosol type, fire arrestors to provide protection against thermal runaway events. In the unlikely event that the battery’s BMS hasn’t already nullified an issue, the 2 x S-Type devices engage to mitigate any fire activity.
Adaptable to any Installation
Drypower rack modules are suitable for use in fixed or mobile applications. Whether a stand-alone backup power system for infrastructure, or a mobile coffee van, the Drypower range will deliver reliable performance for years to come.

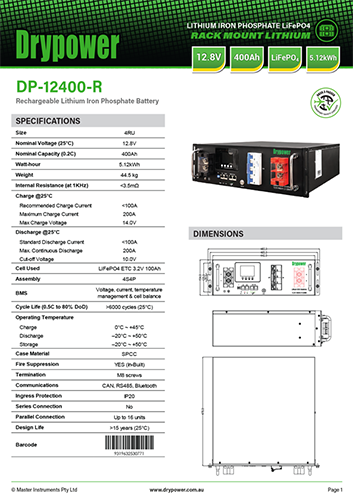

Specifications:
| Voltage (V) | 12.8V |
|---|---|
| Construction | 4S4P 4RU |
| Capacity (Ah) | 400Ah |
| Watt Hour (Wh) | 5120Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >6000 cycles (0.5C@25°C, 80% DOD) |
| Max. continuous discharge current | 200A (0.5C) |
| Discharge cut-off voltage | 10.0V |
| Charge Voltage | 13.8V - 14.2V |
| Max. continuous charge current | 200A |
| Operating discharge temperature | -20°C to +50°C |
| Operating charge temperature | 0°C to +45°C |
| Storage temperature | -20°C to +50°C |
| Protections | Short Circuit, Over Charge/Discharge, Over/Under Temperature, Auto Safety Switch |
| Ingress Rating | IP20 |
| Series connection allowed* | NO |
| Parallel connection allowed* | YES - Up to 16P* |
| Communications | RS485/CAN |
| Case structure | SPCC |
| Compliances | UL1973, UN38.3, IEC62619 |
| Warranty | 5 years |
* No Series Connection Allowed
* Please consult user manual for information about Parallel configurations
Each Drypower DP-12400-R Module is supplied with:
- 12.8V 400Ah 5.12kWh Battery module
- 1 x RED 0 AWG Power Cable 250mm w/SC50-8 Terminals
- 1 x BLACK 0 AWG Power Cable 250mm w/SC50-8 Terminals
- 1 x Class 6 Network Cable 300mm
- 1 x 6AWG Ground Cable 1000mm
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
|---|---|
| Voltage | 12.8V |
| Watt Hour | 5120Wh |
| Nominal Capacity | 400Ah |
| Termination | |
| Width | 442mm |
| Height | 154mm |
| Length / Breadth / Depth | 470mm |
| Weight | 44.5kg |
